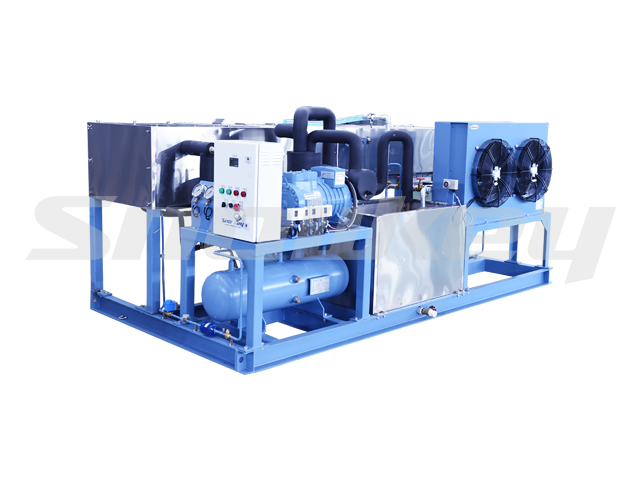

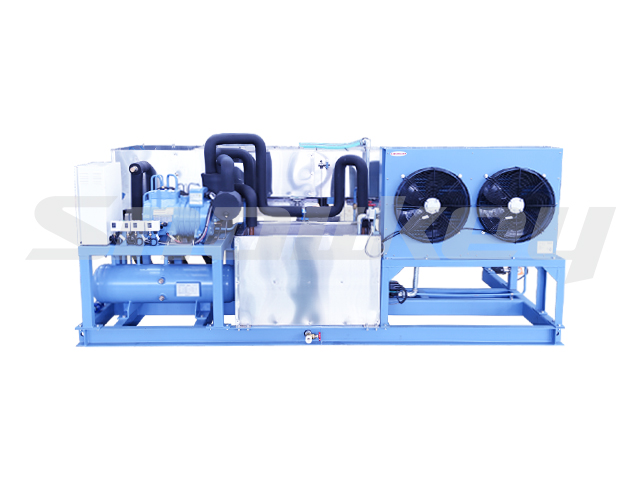

Aluminum-alloy Direct Evaporation Block Ice Machine B10AF (1T/D)

NO.B10AF

Aluminum-alloy Direct Evaporation Block Ice Machine B10AF (1T/D)

NO.B10AF

Product Description Technical Parameters

Application Fields:
Food processing
Fisheries industry
Chilled fresh-keeping
Commercial supermarket logistics
Edible ice
Product Features
All in one unit, small volume, no need to bulid special construction site, to connect water and electricity can be making ice.
Used meeting the requirements of health aluminum plate evaporator, the making ice is clean and health
Optimized the design of the refrigeration system, stable operation and low failure rate
Refrigerant hot gas to defrost ice, defrosting ice is fast, and small impact on system, high safety;
Ice making, ice defrosting process is automatic control, no need manual intervention


Operating conditions
Power Requirements: International general standard of the whole system of electric power supply
Standard working conditions of ice production: water supply temperature 20 ℃, ambient temperature 33 ℃
Applicative operating mode, water temperature 0 to 35 ℃, ambient temperature  5 ~ 40 ℃
Refrigerant: R404A,R507A
Performance parameters
Ice Output: 1,000kg/d
Condensing temperature:43℃;
Evaporating temperature:-15℃
Ice Outlet temperature:-2℃
Refrigeration capacity of compressor:7KW
Qty of compressor: 1 unit
Running power consumption: 3.775kw
Installed power:5.25kw
Water consumption of ice making: 45.83L/hr
One cycle ice making : 4 hrs
Overall dimensions: L 3200*W1650*H1340mm
Running Weight:4,500KG
Weight of block ice:5kg/pc
Size of block ice: 215x100x280mm
(Due to technical innovation,the above parameters will be changed ,If necessary, please contact our sales office)
