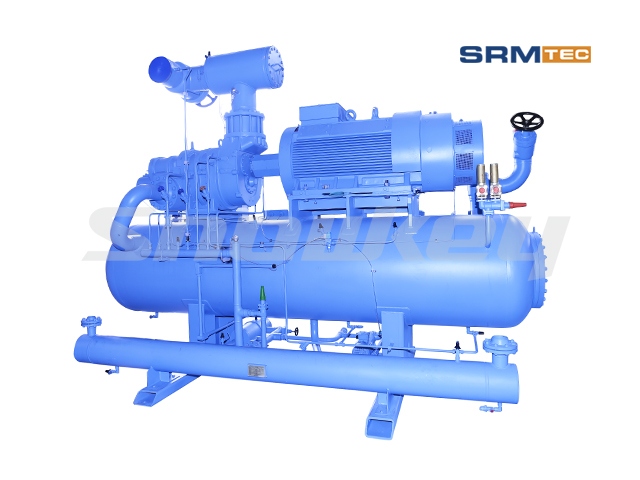

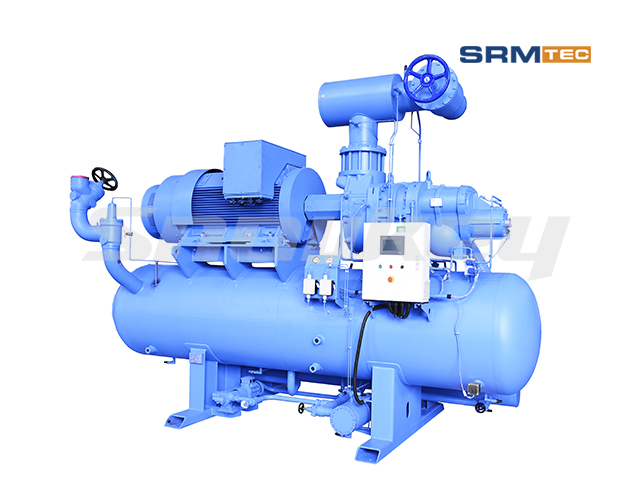

SRMP1 single-stage
screw compressor unit can be divided into 6 series and 21 models, with exhaust
volume of 215-10850 m3/h, and application temperature scope: intake temperature
from -45 ℃ to +20 ℃, exhaust temperature from +45 ℃ to +100 ℃. The unit is
compact in structure, effectively reducing installation space, and features
multi-point measurement and control, automatic and manual regulation of energy
slide valve and VI slider; thus, it is energy-efficient and significantly
reduces operating costs. It is applicable to refrigerants, such as R717, R22,
R404A and R507A. The unit is equipped with: compressor, control center, high
efficiency oil separator, economizer, oil cooler, large-capacity filter,
pre-lubrication oil pump and automatic control valve. It features intelligent
control and can complete system operation by one button.
Advantages of SRMP1
open-type single-stage fixed-frequency screw compressor unit
● It features a
full-automatic push-to-start and capability of auto analyzing and controlling
operation conditions, historic data records and remote
communication
● Applicable to
multiple starting methods, such as star-triangle, auto-transformer reduced
voltage starting and soft start
● 5+7 best gear ratio
combo; SRM "i" type patented molded line; higher COP value than the
similar
● Adoption of a
pre-lubrication differential pressure lubrication system with a small oil pump,
which is stable and reliable
● Via an economizer
provided in it, sensible heat of high pressure liquid is absorbed, making the
high pressure liquid from the condenser achieve higher aftercooling degree so as
to improve COP of the system
● Equipped with a
muting device to ensure low noises, low vibration and stable
operation
● Provided with a
preventive safety system
● Integration of
internally piloted valves for compactness and easy operation
● Each screw
compressor unit has undergone overall performance tests before shipping to
ensure stable performance

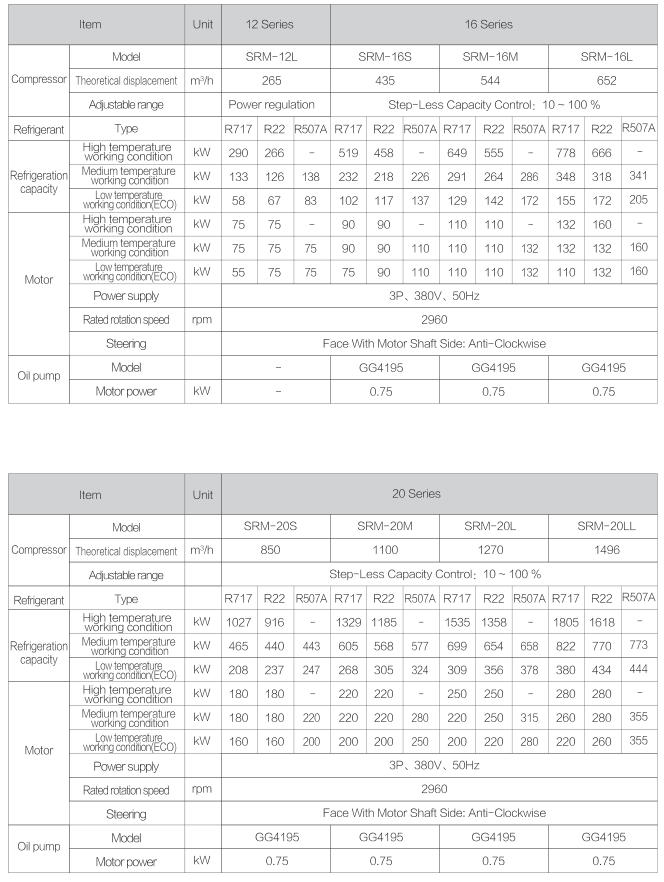

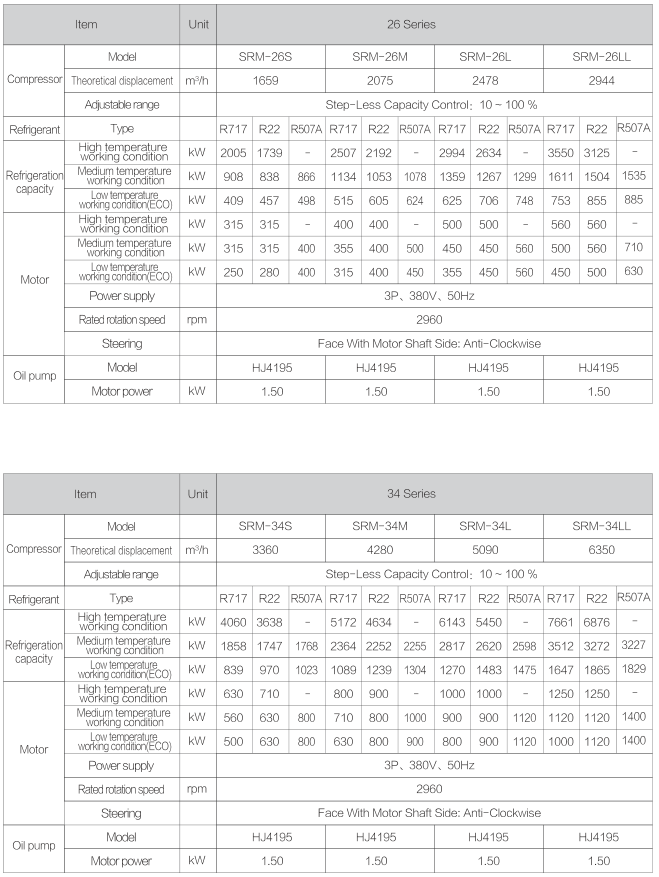

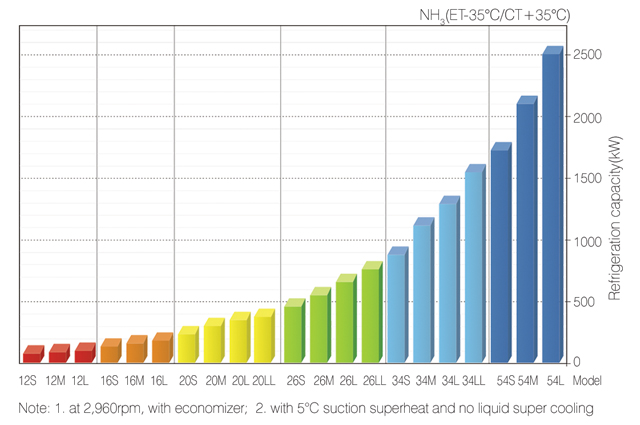

Refrigeration Capacity of
SRMP1 Open-type Single-stage Screw Compressor Unit (Constant
Speed)
