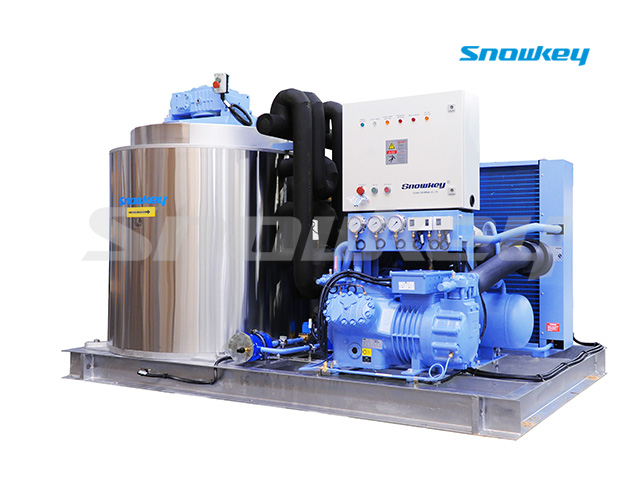

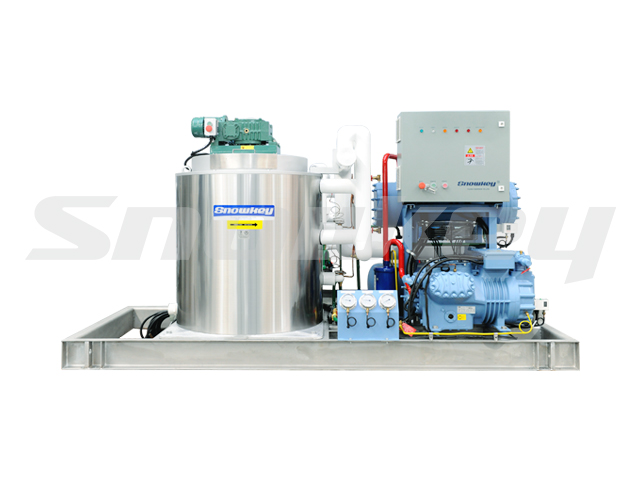

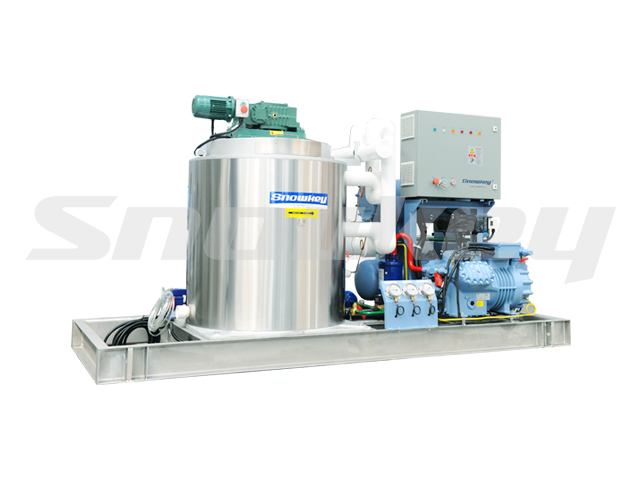

Flake Ice Machine F60A (6T/D)

NO.F60A

Flake Ice Machine F60A (6T/D)

NO.F60A

Product Description Technical Parameters

Application
Food Processing
Fishery Processing
Fresh Preservation
Meat Processing
Medical Facilities
Supermarket
Environmental Engineering
Product Features:
High standards of evaporator, durability, safety and reliability;
Directly formed at low temperature, high efficiency;
Excellent design, stability and low breakdown rate;
Environment-friendly refrigerant, high efficiency and energy saving;
Full series of products for all applications;
Flake ice are dry, uniformity of thickness, and full capacity;
Full-automatic control;
Certificate CE(PED)/ASME;
With stainless steel or plastic storage, full series for selection;
Nice appearance with thorough to the last detail;

Design Conditions:
Power: International Standards
Standard Conditions: water inlet temperature 16℃, Ambient temperature: 25℃
Application Condition: water inlet temperature 0~35℃, Ambient temperature: 5~40℃
Thickness: 1.5~2.2mm, Outlet ice temperature: -5℃
Refrigerant: R404A, R507A or R717
Performance Parameter
Capacity: 5000kg/d
Compressor Refrigeration Capacity: 29KW
Evaporating Temperature: -22℃
Condensing Temperature: 43℃
Reducer Power: 0.37KW
Water Pump Power: 0.125KW
Install Power: 20.835KW
Power Consumption: 17.285KW
Water Consumption: 208L/Hr.
Net Weight: 1600Kg
Dimension: L 2685*W 1750*H 1471mm
Ice Drop Diameter: 710mm
Model and specification can be subject to change without notice.
