SPS21 CO2 Subcritical Piston Compressor

NO.SPS21 series

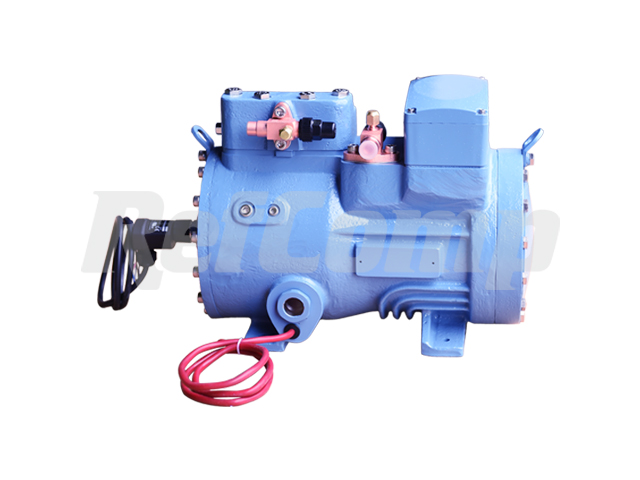

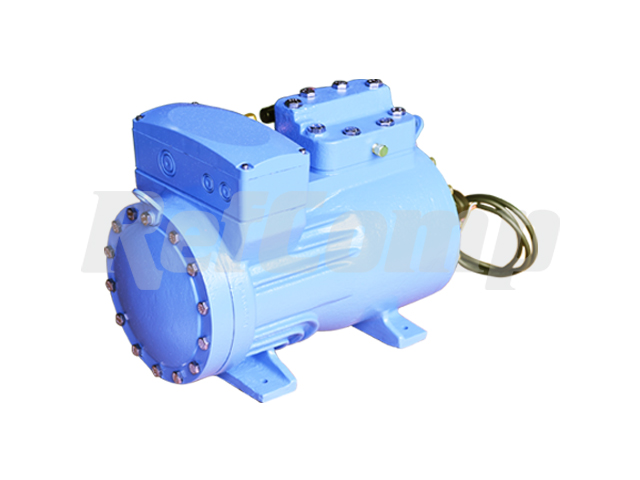

SPS21 CO2 Subcritical Piston Compressor

NO.SPS21 series

Product Description Technical Parameters

SPS21

RefComp SPS compressors are applicable for CO2 subcritical cycle, including 19 models. Displacement: 1.5- 48.5m3/h,power:0.5- 30HP. The components are specifically designed for CO2, ensuring the high efficiency and stable operation of the compressor. SPS piston compressors are characterized by high efficiency, long durability and compact size.

Features of RefComp-SPS Series CO2 Subcritical

Working pressure as high as 60bar, advanced design concept,high quality housing material selected to ensure the housing to meet the strength requirement.
Environment- friendly refrigerant CO 2, advantageous in areas where the requirement for safety is high, with evident environmental benefit.
Safety valve installed to prevent the pressure inside the housing from exceeding the safety threshold.
Built- in high density suction filter to remove the impurities of the refrigerant gas and protect the motor.
Reliable and efficient valve plate group design valve with plate made from impact- resistant spring steel. Rapid and reliable gas exchange and long durability.
The sliding bearings are made of composite materials, providing reliable support for the moving components.
Motor protection module, to ensure safe operation of the compressor.

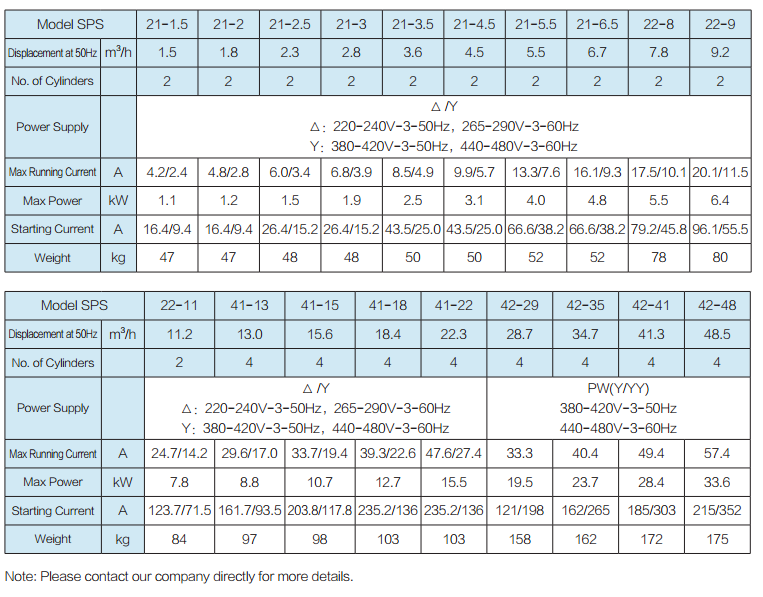

SPS21 Technical Data Sheet
